Shape: Cup
Material: A, WA, C, GC, brown fused alumina, white fused alumina,green silicon carbide, black carbon
Hardness: D/E/G, G/H/L, K/L, M/N ,P/Q/R, S/T ,Y
Grit: 36#-240#
Group number: 5 or 6
Combining with the agent: Ceramic binding agent or resin binding agent
Max. speed: 30m/s
Application: Grinding knife, drill and saw blade
Size: 75mm*40mm*20mm, 100mm*50mm*20mm, 125mm*63mm*32mm, 150mm*80mm*32mm, 200mm*100mm*100mm, 200mm*100mm*32mm, 250mm*100mm*150mm
Color: Pink, black, white, taupe, gray-white, orange-red, green
| D(mm) | T(mm) | H(mm) | W(mm) | E(mm) | R(m(mm)m) |
| 3-900 | 3-200 | 3-500 | 1 | 1 | R<6 |
|
| D | T | H | W | E | R |
| 40 | 25 | 13 | 4 | 5 | 3 |
| 50 | 32 | 5 | 7 |
| 60 | 20 |
| 75 | 40 | 8 |
| 100 | 50 | 7.5 | 10 | 4 |
| 125 | 63 | 32,65 | 7.5,12.5 | 13 |
| 150 | 65 | 25 | 25 | 5 |
| 12.5 | 13 |
| 80 | 32 | 15 |
| 200 | 63 | 32,75 | 15 | 18 |
| 100 | 32,75,100 | 25 | 25 |
| 250 | 150 |

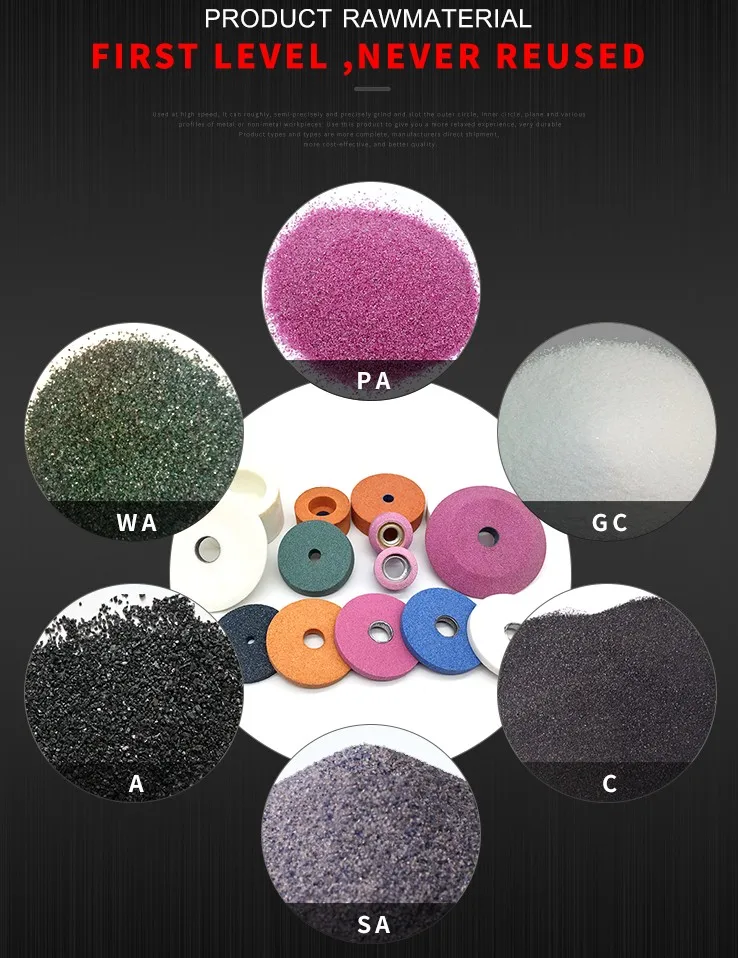

GC/C:Suitable for cast iron, stainless steel, non-ferrous metal, non-metal(like rubber).
A:Low cost. Suitable for low hardness carbon steel, alloy steel, cast iron workpiece.
WA:Widely use in alloy steel, tools tools. It has good self-sharpening and good sharpness.
PA:The property of grinding is same as WA. It improves the surface roughness of workpiece due to some resilience of grinding abrasive.
